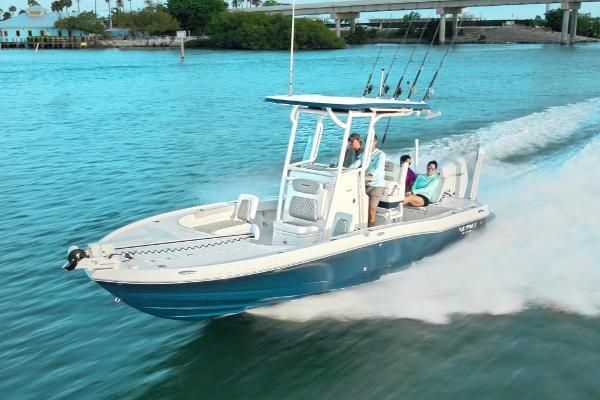

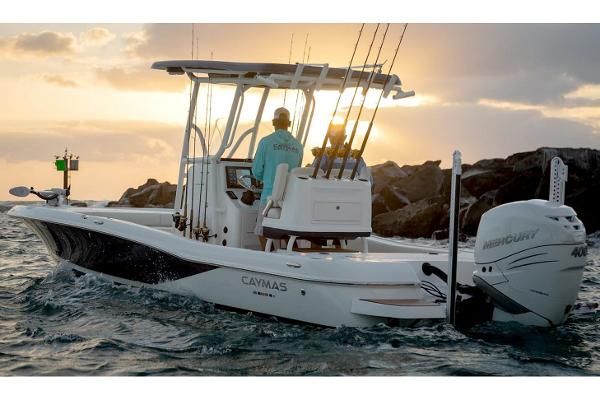

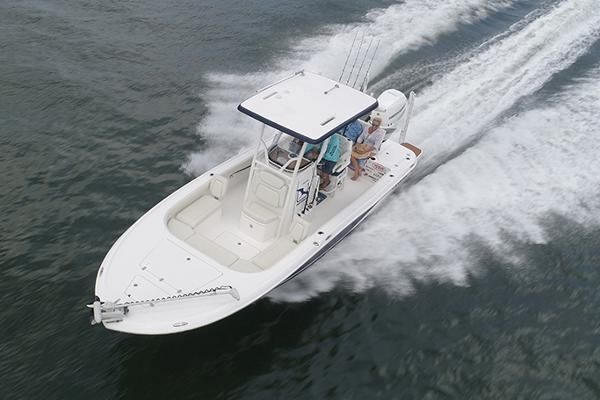

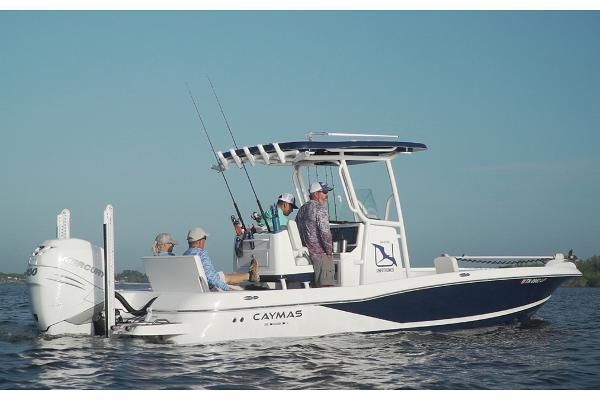

2023 Caymas 26 HB

The Caymas 26 HB does it all for the serious fisherman and for family fun. Performance Starts with a Michael Peters patented Stepped-Vee Ventilated Tunnel Hull. This hull delivers speed, fuel efficiency and a precise, dry and velvet-smooth ride with a 9-foot beam. Serious fishing starts with Oversized 35 gallon live wells, maximum storage tackle, large bow/stern fishing decks and a 90-gallon fuel tank to get you to the farthest fishing grounds and back. The Caymas 26HB is designed for family fun and a day’s comfort with cushioned bow and stern seating, bow and stern cooler options, up to 8 speaker stereo, extra elbow room beam and a standard port a potti in the console when nature or a change of clothes is called for. See for yourself how the Caymas 26HB enjoys the best in marine fit and finish utilizing the highest quality marine hardware and craftsmanship. The Caymas 26HB can be rigged with a Yamaha, Mercury, Suzuki or Evinrude outboard up to 400 horsepower.

Basic Boat Info

Make: Caymas
Model: 26 HB
Year: 2023
Category: Power
Construction: Composite

Dimensions

Length: 25'7 ft
Beam: 9 ft
Min Draft: 1'4 ft
Bridge Clearance: 8'1 ft
Free Board: 2'1 ft
Dry Weight: 4,100 lb
Deadrise: 18.5 °

Engines / Speed

Engines: 1
  • Type: Outboard

Tanks

Fuel Tanks: 1
Fuel Tank Capacity: 90 gal
Water Tanks: 1
Water Tank Capacity: 8 gal

Other

Boat Class: Saltwater Fishing, Center Consoles
Construction
  • Patented Michael Peters double Stepped V Ventilated Tunnel (SVVT) running surface
  • Limited lifetime hull warranty
  • Three (3) year limited component warranty
  • 100% composite construction—no wood
  • Tri-core composite transom
  • High performance resin and barrier coat
  • Hand-laid fiberglass hull
  • Zero-flex fully foamed finished stringer grid system with integrated chase tubes
  • Premium gelcoat, Pure White, with UV inhibitors
  • Fuel tank 5052 aluminum
  • Plumbing and electrical systems tank tested
Boat Systems

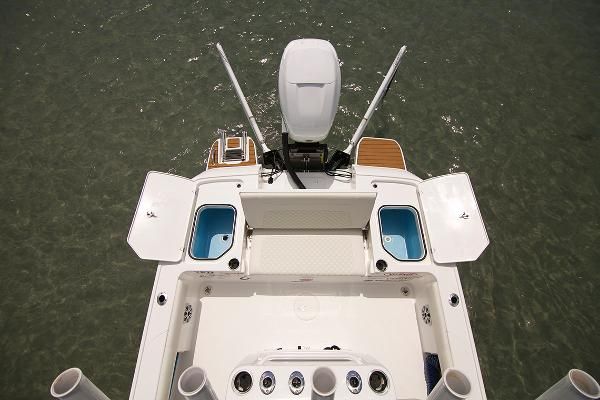

  • 35 gal. starboard-side transom livewell with 800 gph pump and high-speed pick-up
  • Central manifold drain system with shut-off valves
  • 4 gpm raw water washdown pump
  • Two (2) 1500 gph bilge pumps (one (1) automatic, one (1) manual)
  • Mid-ship 500 gph automatic pump
  • Large fish box with macerator pump
  • Six-gauge trolling motor wiring harness
  • Battery switch
  • Circuit breaker protected tinned wiring
  • Electric trim tabs with LED indicators
  • LED anchor light and navigation lights integrated into hard top
  • LED cockpit courtesy lights
  • LED interior console lights
  • LED compartment lights
  • LED livewell lights
  • LED under gunwale lights
  • Factory installed outboard engine of choice with engine gauge
  • Stainless steel push-button switches with backlit LED indicator lights
  • Trolling motor battery trays (36v)
  • AGM engine battery
Deck and Hull
  • Seven (7) 8″ through-bolted stainless steel pull-up cleats
  • Four (4) gunwale mounted stainless steel rod holders
  • Two (2) custom swim platforms; one (1) with boarding ladder
  • Aluminum backing plates glassed in for seats, cleats, rails, rod holders and tops

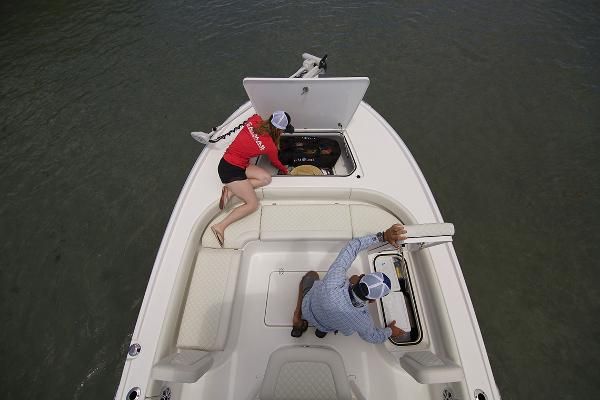

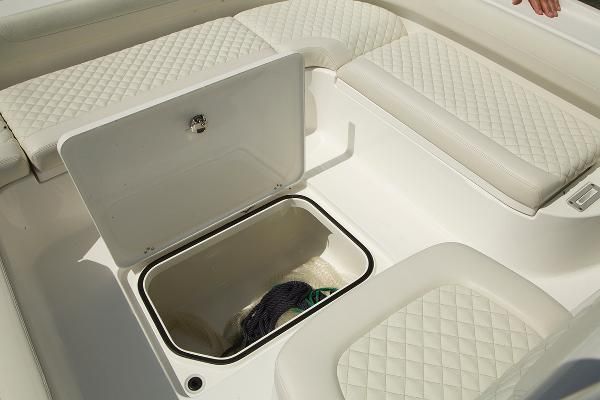

  • Anchor locker with integrated anchor holder
  • Completely finished fiberglass lids, boxes, doors, and bilge area
  • Heavy duty rub rail with stainless steel insert
  • 4″ jackplate

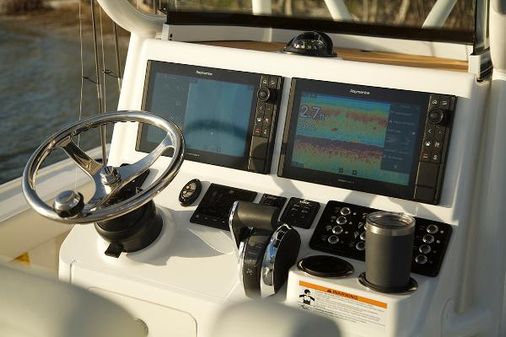

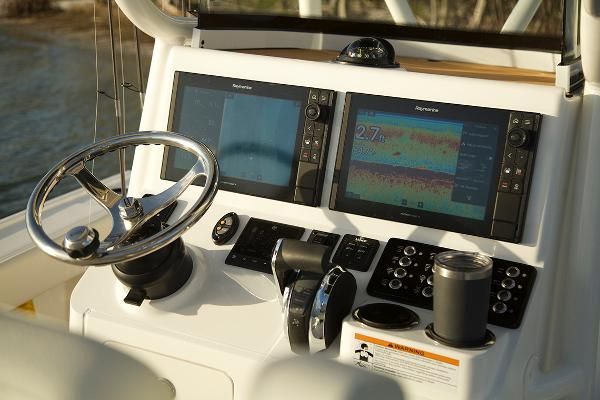

Console and Helm
  • Custom fully finished fiberglass console with large access door
  • Custom console with recessed footrest and storage box
  • Porta Potti
  • Edson® stainless steel comfort grip steering wheel with power knob and tilt steering
  • SeaStar hydraulic steering
  • Eight (8) stainless steel vertical console rod holders
  • Convenient USB port in console storage box

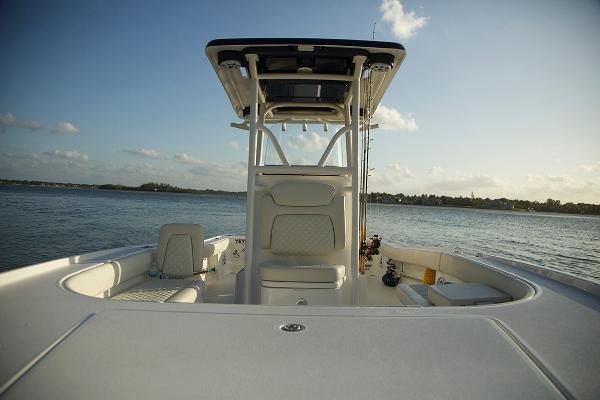

  • Pro series color-matched fiberglass leaning post with custom flip-up bolster seats and backrest, four (4) rod holders and two
    (2) stainless steel lighted cup holders
  • Front of console has built-in cooler with seat cushion and backrest
  • 12 Volt accessory plug
  • Dash accommodates two (2) 12” screens
  • Voyager compass surrounded by custom Surf Turf mat
  • Surf Turf mat on helm step pads and top of cooler (if equipped)
  • Surf Turf flooring inside of console
  • Tempered glass windshield with powder coated frame
  • Stainless steel console grab rail
Cockpit
  • Custom aft bench seat with cushion and folding backrest and removable fiberglass storage bin
  • Two (2) stainless steel lighted cup holders at aft bench
  • Under-gunwale rod storage
  • Two (2) lockable rod storage lockers—port and starboard
  • Raw water washdown station conveniently located under gunwale
  • Stainless steel lid-latches with stainless steel striker plates
  • Self-bailing cockpit with custom non-skid decking

Contact Us


More From Caymas

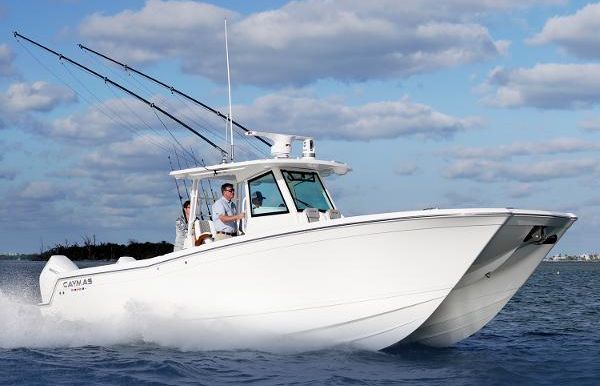

2023 Caymas 401 CC
